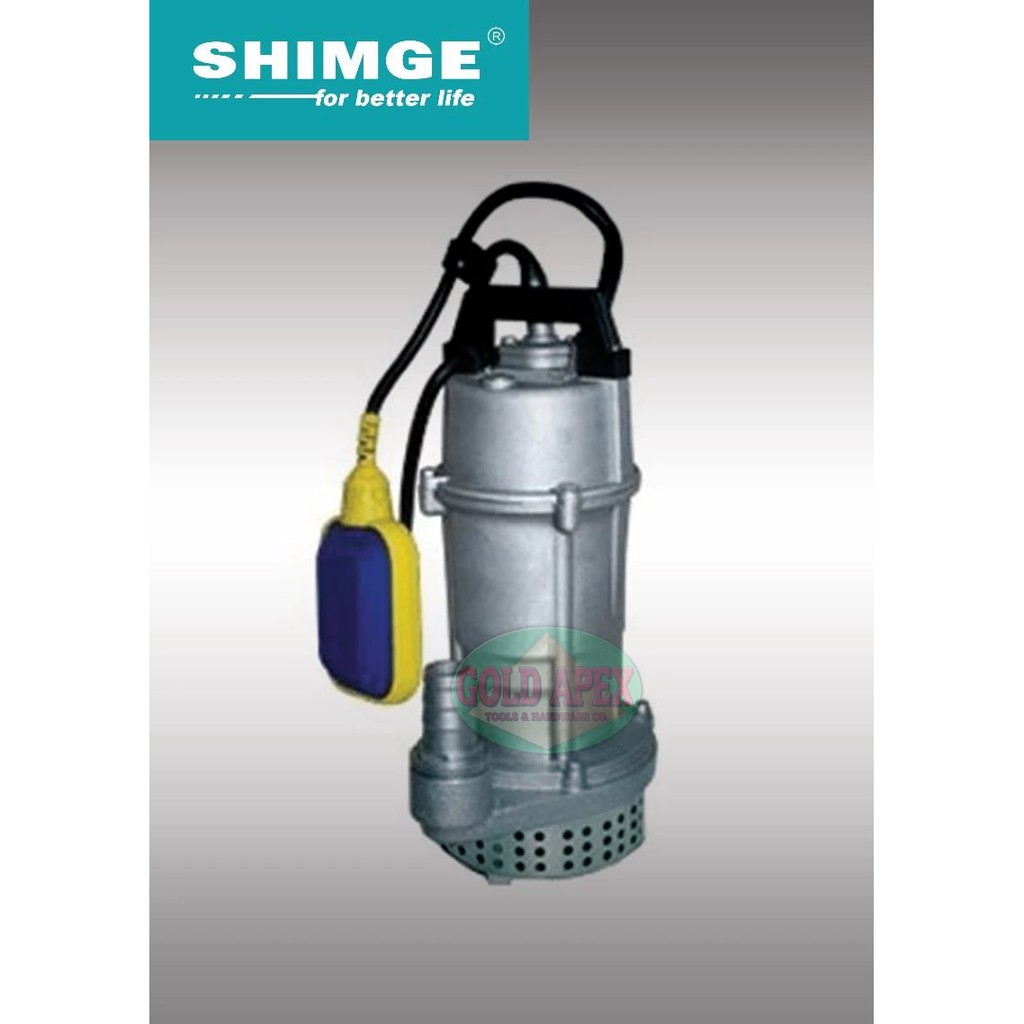

100% Copper Thermally-Protected Application Fields With small size and light weight, the Q(D)X-L series pump is especially suitable for the rural wells water pumping, farmland irrigation and drainage, garden watering, water spraying and family households, as well as other applications such as industrial , construction, aquaculture, fish ponds, etc. Features •New-designed motor structure ,longer service life. •Portable and durable aluminum alloy structure. •Alloy impeller of high performance engineering plastics or aluminum. Application Limits •Maximum liquid temperature +40? •pH level from 6.5-8.5 •Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm •Power frequency is 50Hz.Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%. •Immersion depth from 0.5m-5m Specifications Model 1.5-25-0.55L2(F) Rated Power (HP) 0.8 Rated Voltage (V/Hz) 220/60 Outlet Diameter (mm) 25 Head Range (m) 17-26m Rated Head (m) 26 Rated Flow (m3/h) 1.5 Max Flow (m3/h) 6.00
