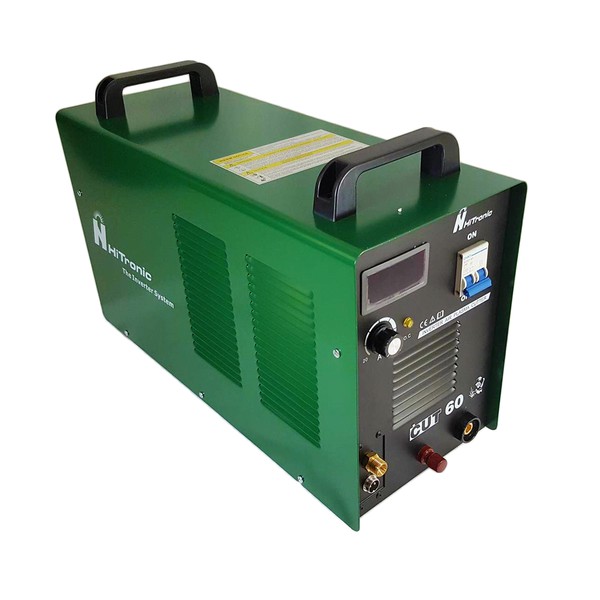

Hi-Tronic CUT 60 w/ Pilot ARC Inverter Plasma Cutter
No ratings yet
Merchandise Protection
Learn More
Shipping Fee:
₱207
Specification
Brand,Ships From
Description

Features: Plasma Cutting, excellent for cutting carbon steel, stainless steel and copper. Pilot ARC for Easy Start for Cutting. Specifications: •Voltage: 220V Single Phase •Rate Input Power: 10.7KVA •No-Load Voltage (V): 295 •Rated Input Current (A): 48.6 •Current Range: 20-60A •Rated Output Voltage (V): 104 •Duty Cycle: 60% •Power Factor: 0.73 •Efficiency: 80 •Pilot Arc Model: HF Oscillating •Burner Inter dia. (mm): 1.0 •Pressure of Air Comp (Mpa): 0.4-0.5 Mpa •Thickness (mm): 1-20mm •Weight (kg): 19 •Dimension (mm): 480x204x303 Air Compressor not included.
