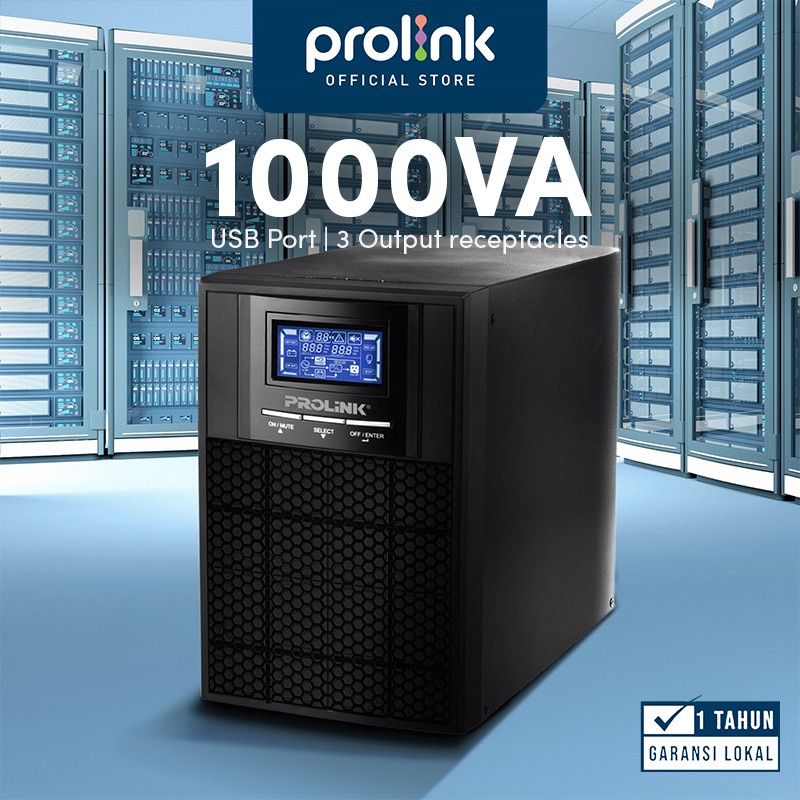

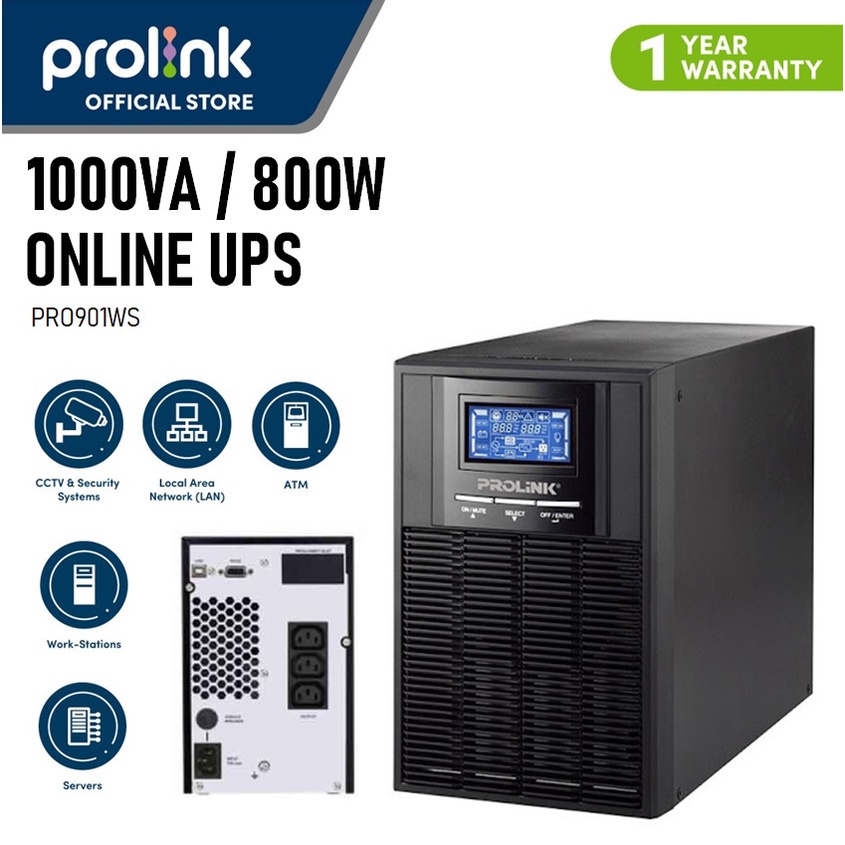

Professional II Series (1P/1P) PROLiNK Professional II Series (1P/1P) is a single-phase UPS system using microprocessor controlled true online double conversion technology and it can be used to provide protection for critical loads especially on IT applications. High input power factor correction in the system improves efficiency and reduces overall losses. • True double-conversion • Microprocessor control optimizes reliability • Input power factor correction • Output power factor 0.8 • Wide input voltage (110 V – 300 V) • Converter mode available • ECO mode for energy saving (Only available for 1-3KVA model) • Generator compatible • Smart SNMP works well with either USB or RS-232 together • Optional Emergency Power Off function [EPO] GENERAL • UPS Type Tower • Phase Single phase with ground • Rating (VA) 1000 • Nominal Power (W) 800 • Standard Model Dimension (mm) 282 x 145 x 220 (D x W x H) • Weight (kg) 9.8 • Long-run Model Dimension (mm) 282 x 145 x 220 (D x W x H) • Weight (kg) 4.1 INPUT • Connection Type IEC 320-C14 • Nominal Voltage 200/208/220/230/240 VAC • Voltage Range 110-300 VAC (Load at 50%) 160-280 VAC (Load at 100%) • Frequency Range 45 ~ 70 Hz • Power Factor >= 0.99 OUTPUT • Connection Type 3 x Universal socket (PRO901WS) 2 x Universal socket (PRO901WL) • Nominal Voltage 200/208/220/230/240 VAC • Voltage Regulation ±1% • Frequency Range (Synchronized Range) 47 ~ 53 Hz or 57 ~ 63 Hz • Frequency Range (Batt. Mode) 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz • Current Crest Ratio 3:1 • Harmonic Distortion ≤3% THD (Linear load) ≤6% THD (Non-linear load) ALARM & INDICATORS • Battery Mode Sounding every 4 seconds • Low Battery Sounding every second • Overload Sounding twice every second • Fault Continuously sounding • LCD Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault CONNECTIVITY, CONTROL & MONITORING • Front panel Status LED, Function keys, LCD display • Communication Smart RS232* USB Port BATTERY • Standard Model Type 12V / 9Ah • Numbers 2 • Typical Recharge Time 4 hours recover to 90% capacity • Long-run Model Type Depending on the capacity of external batteries • Number 2 or 3 • Charging Current (max) 1A / 2A / 4A / 6A Adjustable
