Specification
Brand,Ships From
Description

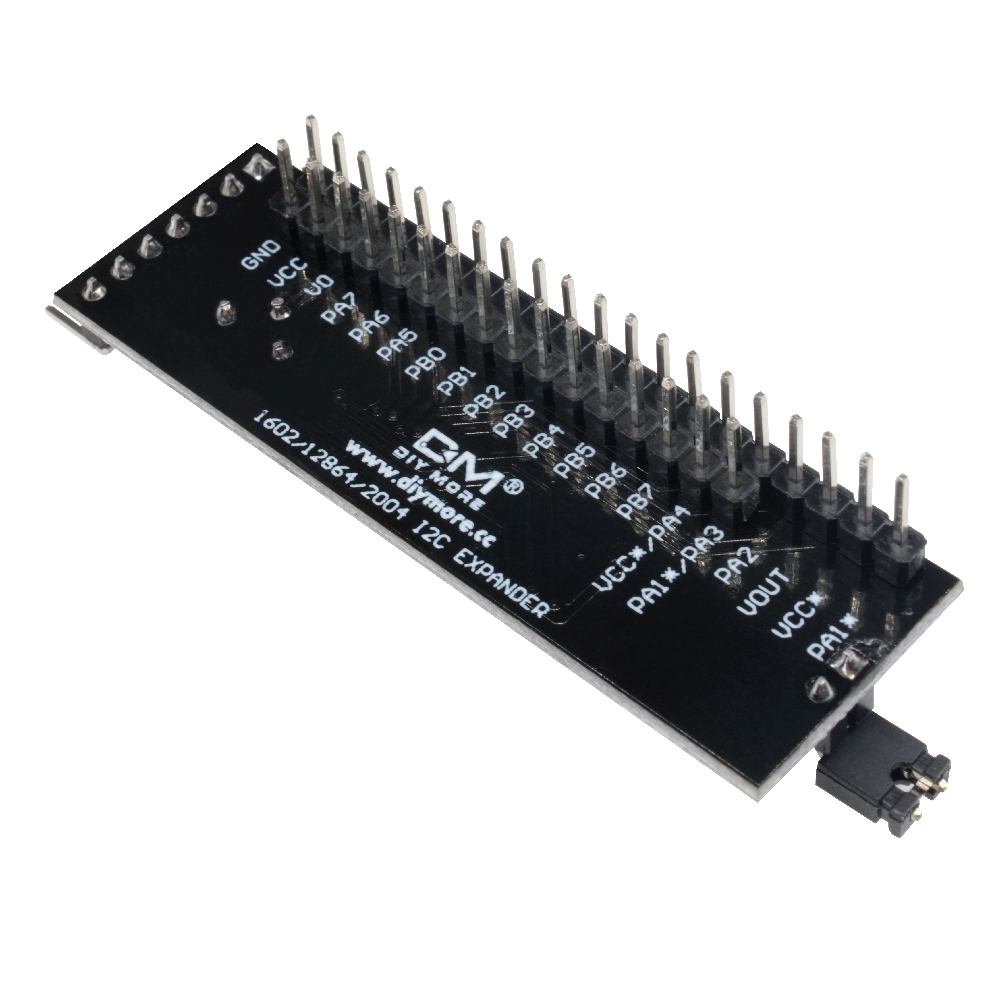

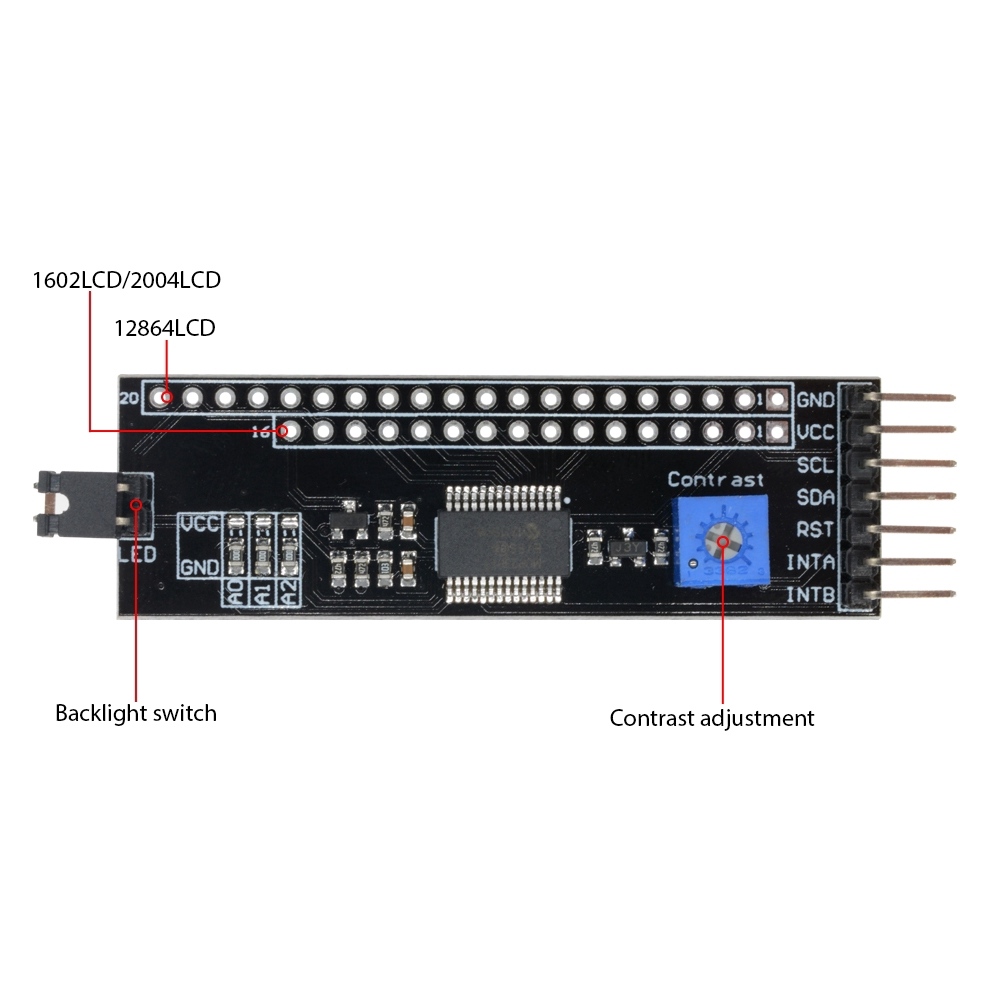

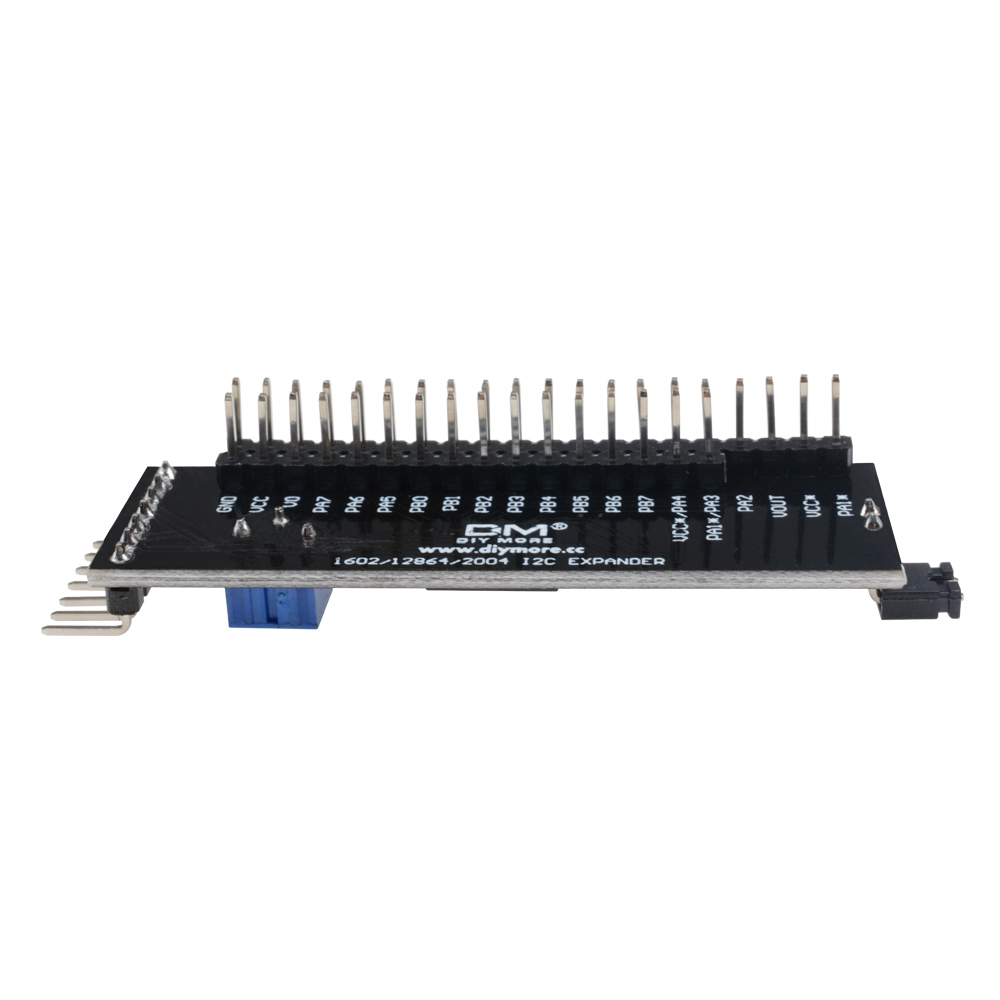

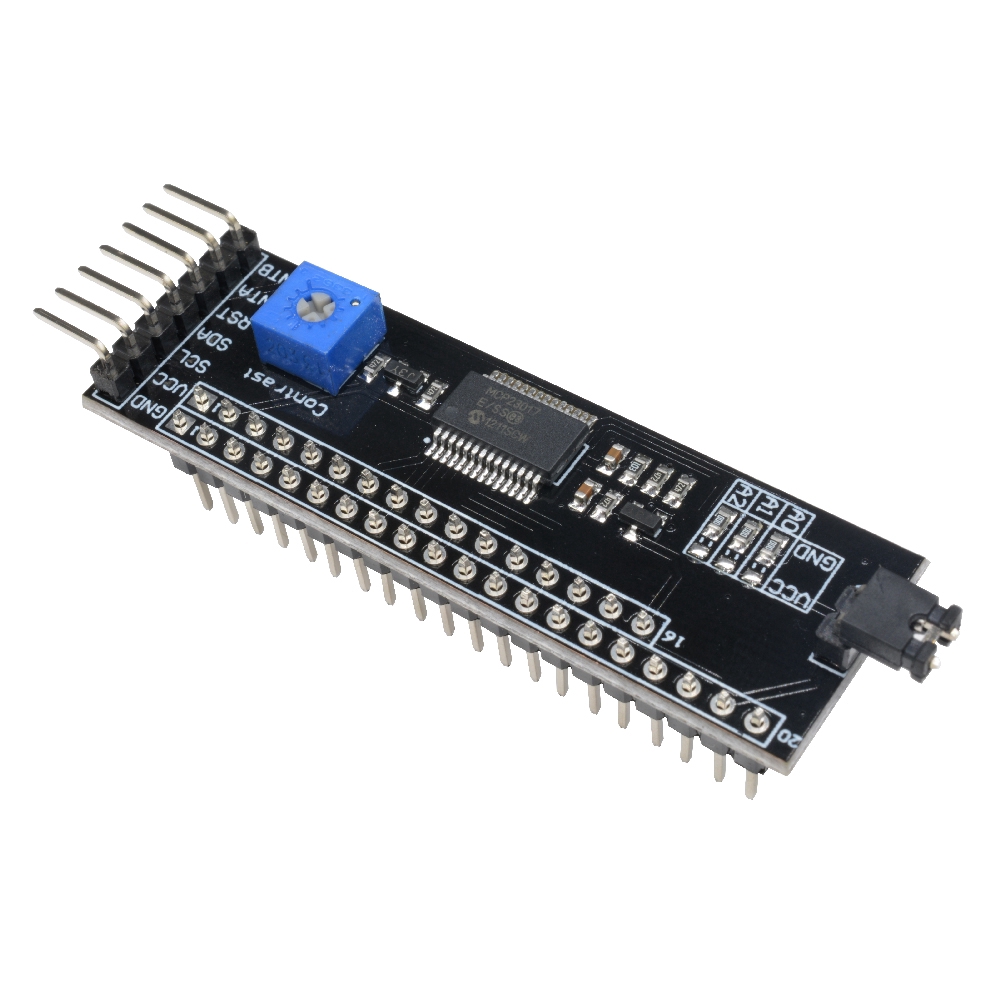

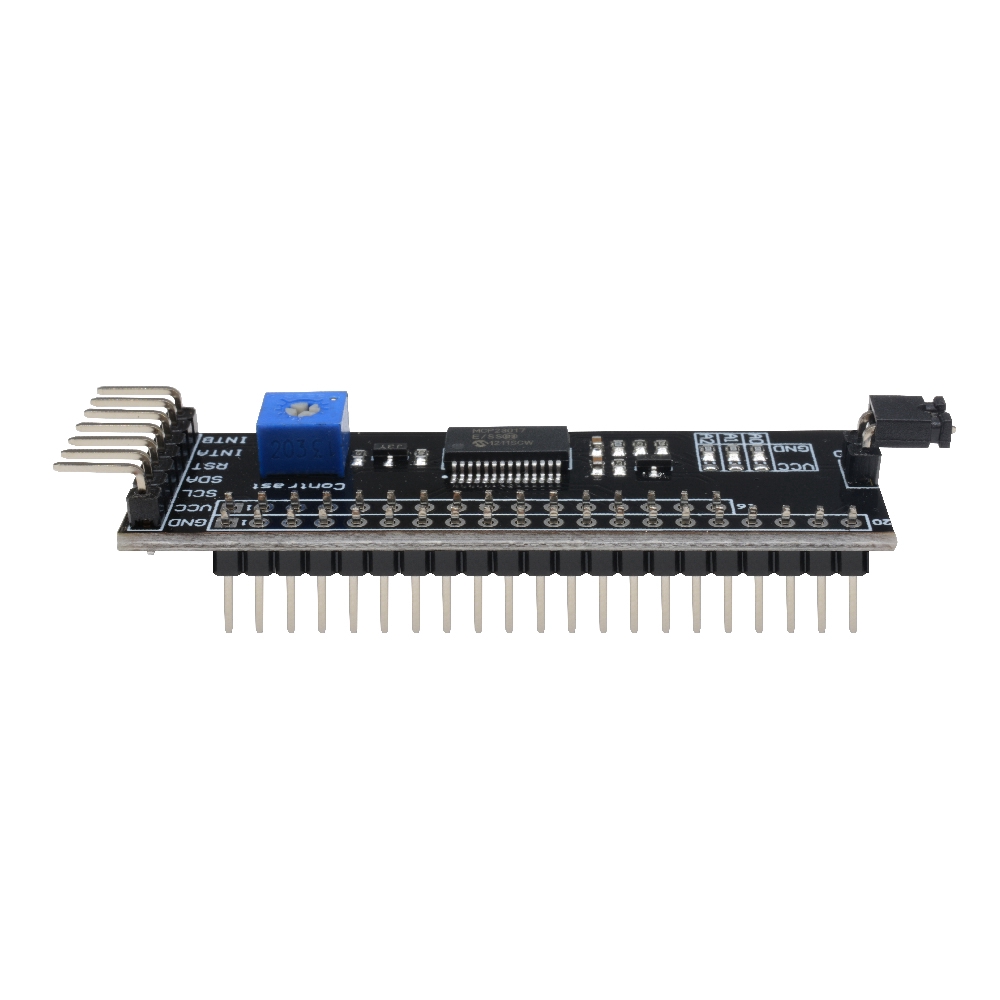

Uses MCP23017 chip, it is compatible with 1602 and 12864 liquid crystal screens, through this module is switched, use I2C communication, only need two MCU I/Os to be able to realize the liquid crystal to drive the display. The potentiometer on the module can achieve contrast adjustment. You can also unplug the jump cap to turn off the backlight or adjust the brightness through PWM. We provide wiring diagram and for sample code, isn't it great! Supply voltage: 5V the backlight and contrast is adjusted by potentiometer Compatible for 1602 LCD 2004 LCD 12864LCD Package: 1 x for 5V 1602/2004/12864 IIC/I2C LCD Serial Interface MCP23017 Expander Module
