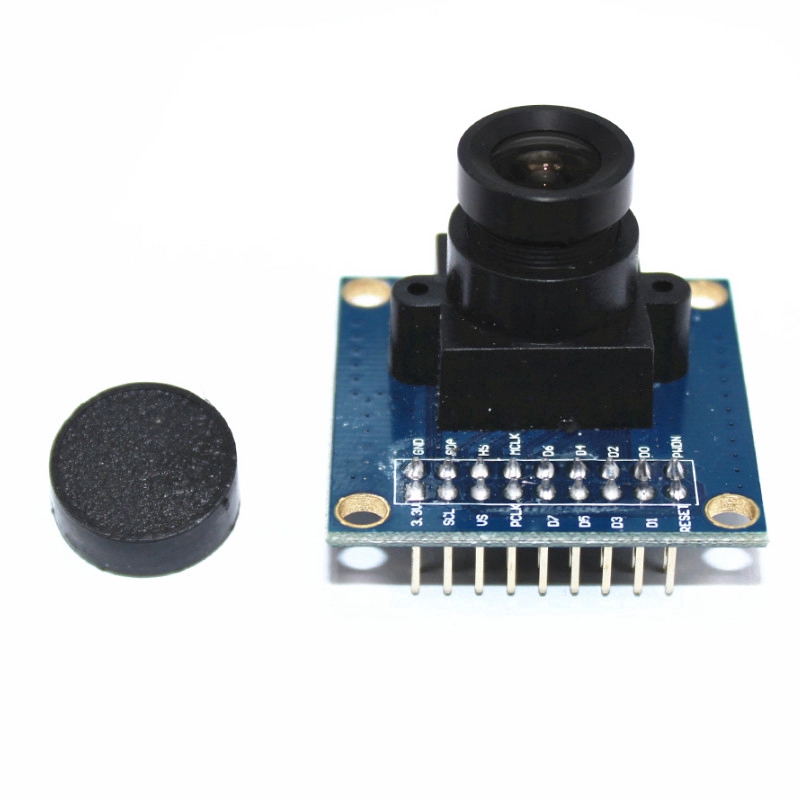

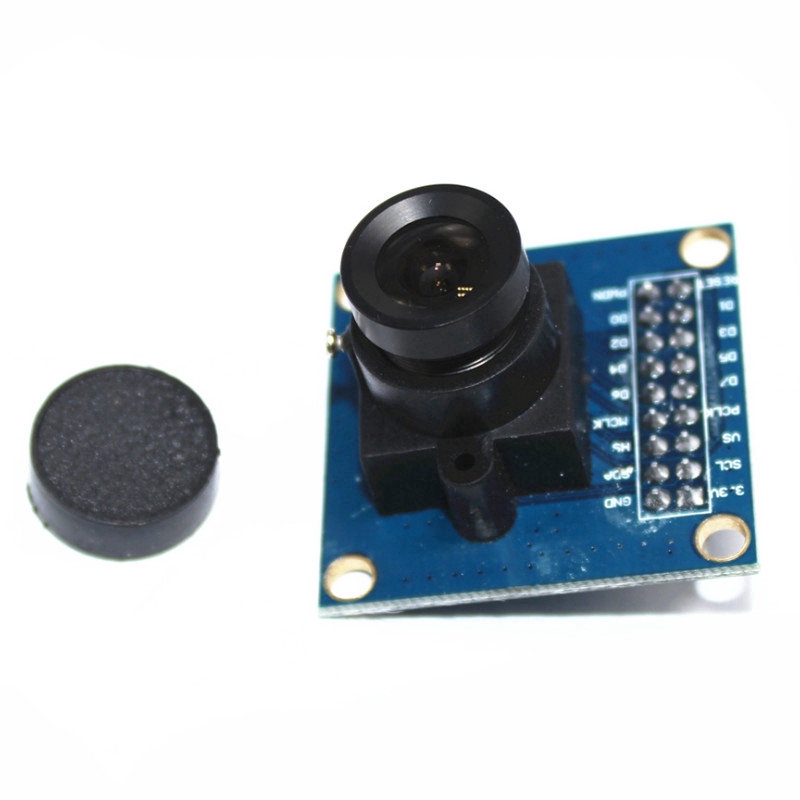

The OV7670 Camera Board is a simple digital camera based on OV7670, it uses dark PCB to prevent light leak. The OV7670 Camera Board makes it possible to take photos and/or record video with your development board. High sensitivity for low-light applications Low voltage suitable for embedded applications Standard SCCB interface compatible with I2C interface RawRGB to RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2)output format support VGA, CIF, and from CIF to 40x30 the size VarioPixel subsampling way eliminate light stripes, automatic black level calibration image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM ISP has eliminate noise and dead pixel compensation function support image scaling The lens is the loss of light compensation 50/60Hz detection the saturation automatically adjust ( UV adjustment) edge enhancement automatically adjust Noise Reduction automatically adjust key parameters photosensitive array 640X480 IO voltage 2.5V to 3.0V ( internal LDO to core supplies ) the power operation 60mW/15fpsVGAYUV Sleep < 20 μ A temperature operation from -30 ° C to 70 ° C 0 ° C to 50 ° C ( 8 -bit) output format ? YUV/YCbCr4 RGB565/555/444 GRB4: 2:2: 2:2 Raw RGB Data Optical size of 1/6 " field of view angle of 25 ° maximum Zhen rate 30fps VGA Sensitivity 1.3V / (Lux-sec) signal to noise ratio of 46 dB dynamic range of 52 dB browsing mode progressive electronic exposure area of 3.6 μ mx 3.6 μ m dark current 12 mV / s at 60 ° C #Module #Camera
