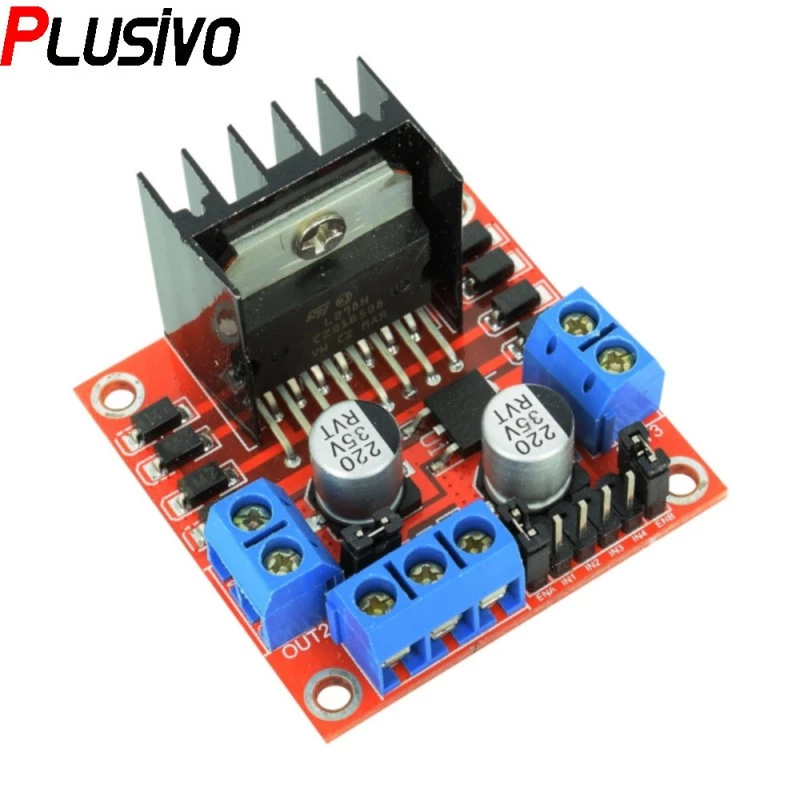

Product details of L298N Dual Motor Driver Module Overview: L298N engine driver module ideal for controlling two small and medium engines. Technical Specifications: • Motor voltage: 5 V - 35 V; • Logic circuit voltage: 5 V; • Motor current: 2 A (MAX); • Logic current: 36 mA; • Maximum frequency pwm: 40 kHz. • Dimensions: 43 x 43 x 27 mm. The driver also contains a linear voltage limiter, so when the power supply to the motors is> 7 V, there is no need to feed the logic part separately. The driver is a dual driver, capable of controlling two engines. It can also be used for stepper motors. Even though it is larger in size, it is useful in that it benefits from a large radiator and dissipates a large amount of heat. Use with Arduino Connections: • Out 1: motor terminal A • Out 2: motor terminal A • Out 3: motor terminal B • Out 4: motor terminal B • 5 V: 5 V input (if the source used is 7-35 V can be used as 5 V) • EnA: PWM for motor A - speed control EnB: PWM for motor B - speed control Pines for speed and direction control: • In1: motor direction A • In2: motor direction A • In3: motor direction B • In4: engine direction B To control the DC motors with the L298N driver we make sure that the EnA and EnB pins are not connected to 5 V. We will connect them to PWM pins 3 and 10 to control the engine speed. To control the direction of the motors: on In1 we write HIGH, and on In2 we write LOW and the motor will go forward. To reverse the meaning we write LOW, respectively HIGH on In1, In2. Similar to engine B. The GND of the driver must also be connected to the GND of the Arduino board to operate. Don't delay, buy today. Add to cart now!
