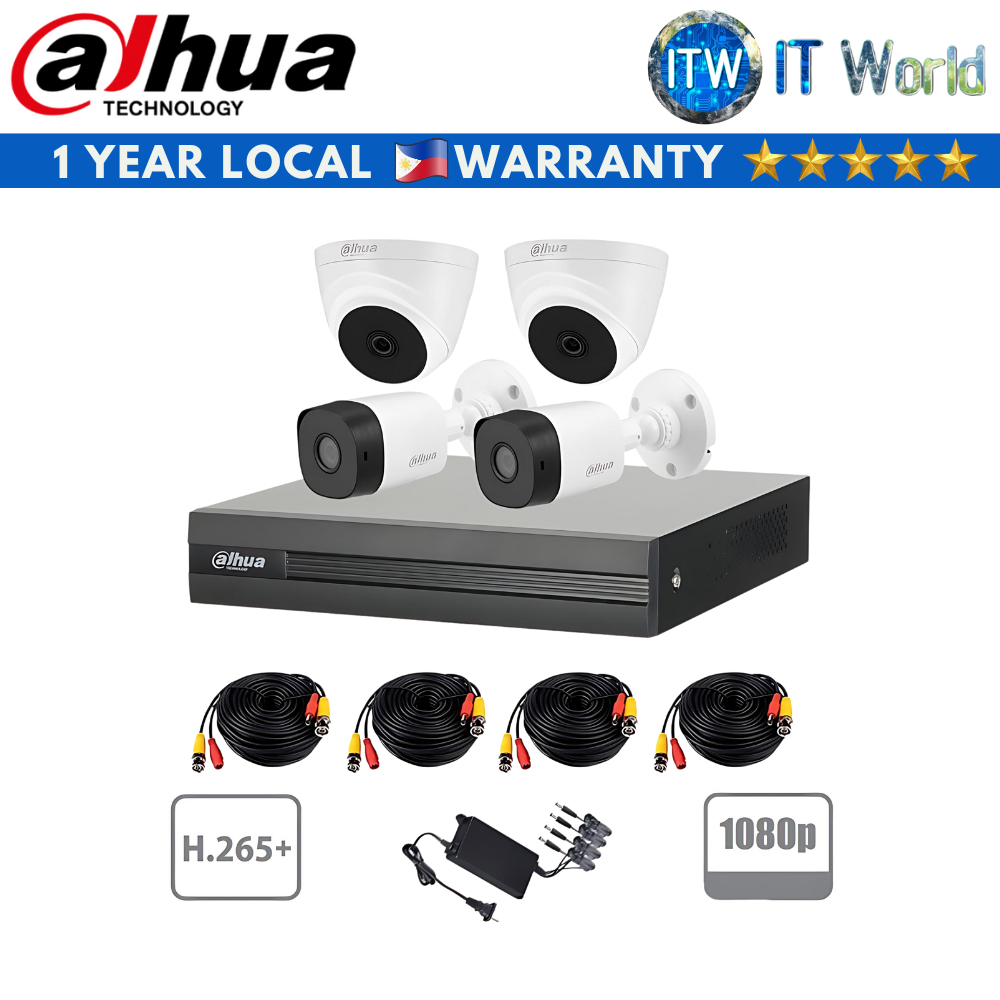

Product Name: Danhua 1080P HD Easy-to-use Security System Kit (DH-KIT-CVI2MP2B2T-I)

DH-XVR1B04-I

System

- Main Processor Industrial-grade processor

- Operating System Embedded Linux

- Operating Interface Web; Local GUI

SMD Plus

SMD Plus by Recorder

- 4 channels: Secondary filtering for human and vehicle,

reducing false alarms caused by leaves, rain and lighting

condition change

Audio and Video

Analog Camera Input

- 4 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect

Camera Input

- 1. CVI: 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps.

- 2. TVI: 1080p@25/30 fps; 720p@25/30 fps.

- 3. AHD: 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 5 channels of IPC access

- 1 IP channel by default + 4 channels (analog channels

- are converted to IP channels)

- Incoming bandwidth: 20 Mbps, recording bandwidth:

- 20 Mbps and outgoing bandwidth: 20 Mbps

*After IP extension is enabled, the AI Function (SMD) will be disabled.

Encoding Capacity

- Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30fps)

Sub stream: CIF@(1 fps–15 fps)

Dual-stream Yes

Video Bit Rate 32 kbps–4096 kbps

Audio Sampling 8 kHz, 16 bit

Audio Bit Rate 64 kbps

Video Output

- 1 HDMI, 1 VGA

- HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720

- VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

- When IP extension mode not enabled: 1/4

- When IP extension mode enabled: 1/4/6

Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

---

DH-HAC-B1A21

Camera

Image Sensor: 2 MP CMOS

Max. Resolution: 1920 (H) × 1080 (V)

Scanning System: Progressive

Electronic Shutter Speed: PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s

Min. Illumination

- 0.02 lux@F2.0 (Color, 30 IRE)

- 0.002 lux@F2.0 (B/W, 30 IRE)

- 0 lux (Illuminator on)

S/N Ratio: >65 dB

Illumination Distance: 20 m (65.62 ft)

Illuminator On/Off Control: Auto

Illuminator Number: 2 (IR light)

Angle Adjustment

- Pan: 0°–360°

- Tilt: 0°–90°

- Rotation: 0°–360°

Lens

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 2.8 mm; 3.6 mm; 6 mm

Max. Aperture: F2.0

Field of View

- 2.8 mm: H: 100°; V: 54°; D: 117°

- 3.6 mm: H:80°; V: 43°; D: 94°

- 6 mm: H: 43°; V: 24°; D: 50°

Iris Control Fixed

Close Focus Distance

- 2.8 mm: 0.5 m (1.64 ft)

- 3.6 mm: 0.8 m (2.62 ft)

- 6 mm: 2.8 m (9.19 ft)

---

DH-HAC-T1A21

Camera

Image Sensor: 2 MP CMOS

Max. Resolution: 1920 (H) × 1080 (V)

Scanning System: Progressive

Electronic Shutter Speed

- PAL: 1/25 s–1/100000 s

- NTSC: 1/30 s–1/100000 s

Min. Illumination

- 0.02 lux@F2.0 (Color, 30 IRE)

- 0.002 lux@F2.0 (B/W, 30 IRE)

- 0 lux (Illuminator on)

S/N Ratio: >65 dB

Illumination Distance: 20 m (65.62 ft)

Illuminator On/Off Control: Auto

Illuminator Number: 1 (IR light)

Angle Adjustment

- Pan: 0°–360°

- Tilt: 0°–78°

- Rotation: 0°–360°

Lens

- Lens Type: Fixed-focal

- Lens Mount: M12

- Focal Length: 2.8 mm; 3.6 mm; 6 mm

- Max. Aperture: F2.0

Field of View

- 2.8 mm: H: 100°; V: 54°; D: 117°

- 3.6 mm: H:80°; V: 43°; D: 94°

- 6 mm: H: 43°; V: 24°; D: 50°

Iris Control: Fixed

Close Focus Distance

- 2.8 mm: 0.5 m (1.64 ft)

- 3.6 mm: 0.8 m (2.62 ft)

- 6 mm: 2.8 m (9.19 ft)
