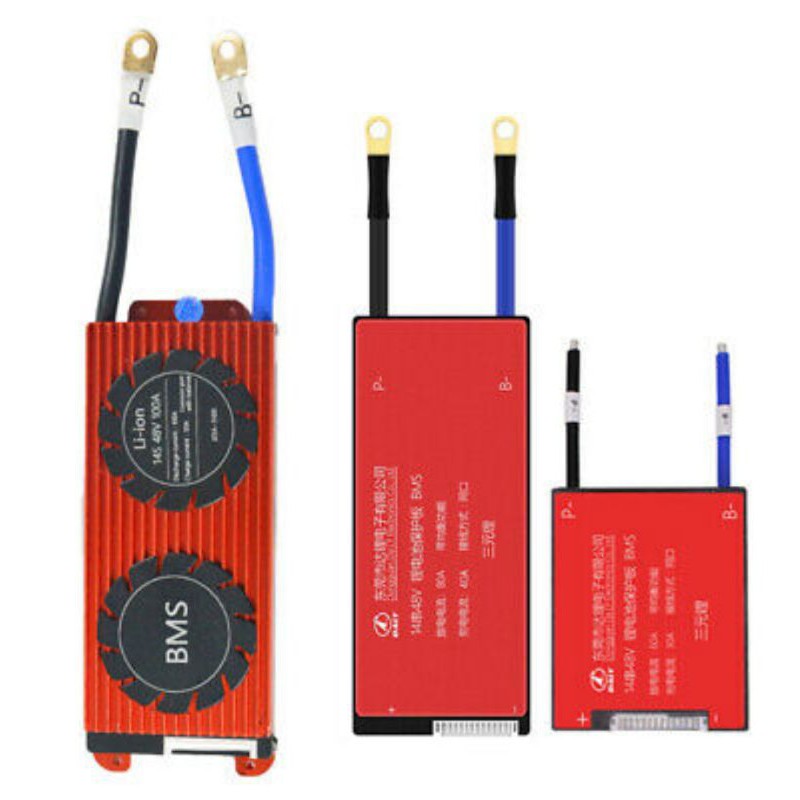

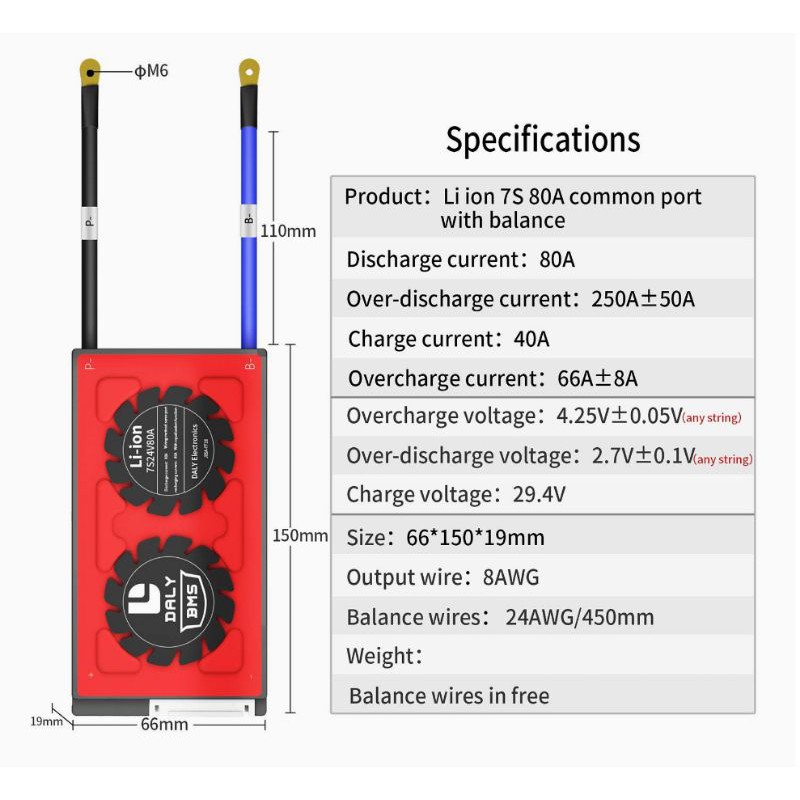

BMS x 1 balance wire x 1 Description - Use top quality (A-level) protective integrated circuit IC, from the solution of Japan. - Strong load ability, constant discharge current 30A 60A 100A, use high voltage resistance - inner resistance power Mosfet. The heat sink will greatly help with cooling. - IC itself has a power balancing function. The circuit is simple and reliable. - Typical voltage detection for each cell. So each battery will be prevented from being overcharged or overcharged. Long-time short circuits of the load won't affect the PCB and the battery - Deficient power consumption. The consumption of the whole device is less than 50uA. - PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating specification Over Charge Detection Voltage: 3.75±0.05V Over Charge Detection Delay Time: 0.5S Over Charge Release Voltage: 3.55±0.05V Cell balancing Detection Voltage: 3.5V Cell balancing Release Voltage: 3.5V Cell balancing Current: 30±5mA Over Discharge Detection Voltage: 2.2±0.05V Over Discharge Detection Delay Time: 0.5S Over Discharge Release Voltage: 2.7±0.05V Over Current Protection Condition: Disconnect the load Detection Condition: Exterior Short Circuit Detection Delay Time: 250uS Release Condition: Disconnect the load
