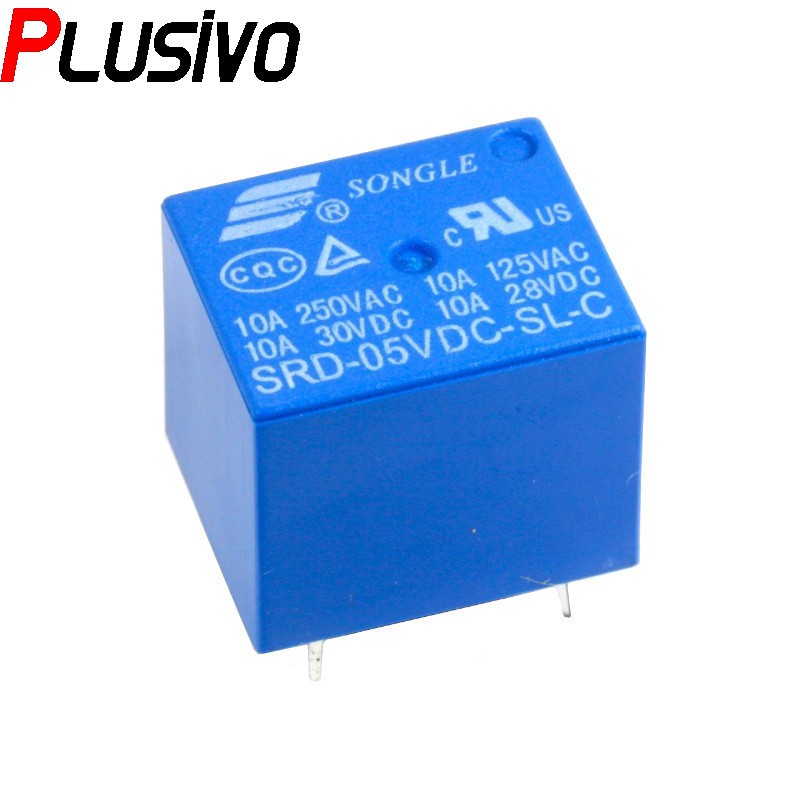

Product details of 5V Relay SRD-5VDC Relay 10A Overview: This 5 V DC Single Power Relay has a current capacity of 10 A. It is great for high current applications such as motors and consumer electronics control applications. Specifications: • Model: SRD-05VDC-SL-C • Nominal Coil Voltage: 5 V DC • Contact Form: 1 A, 1 B, 1 C • Rated Load: 10 A, 250 VAC • Contact Resistance: ≤100 MΩ • Electrical Life: 105 operations. Min. (at rated coil voltage) • Mechanical Life: 107 operations. Min. (no load) • Coil Power: 0.36 W • Pull-in Voltage: ≤75% • Drop-out Voltage: ≥10% • Ambient temperature: -40° C to +80° C • Coil and Contact Voltage: 1500 VAC (1 minute) • Contacts and Contact Voltage: 1000 VAC (1 minute) • Insulation Resistance: ≥100 MΩ (500 V DC) Don't delay. Buy today. Add to cart now!
